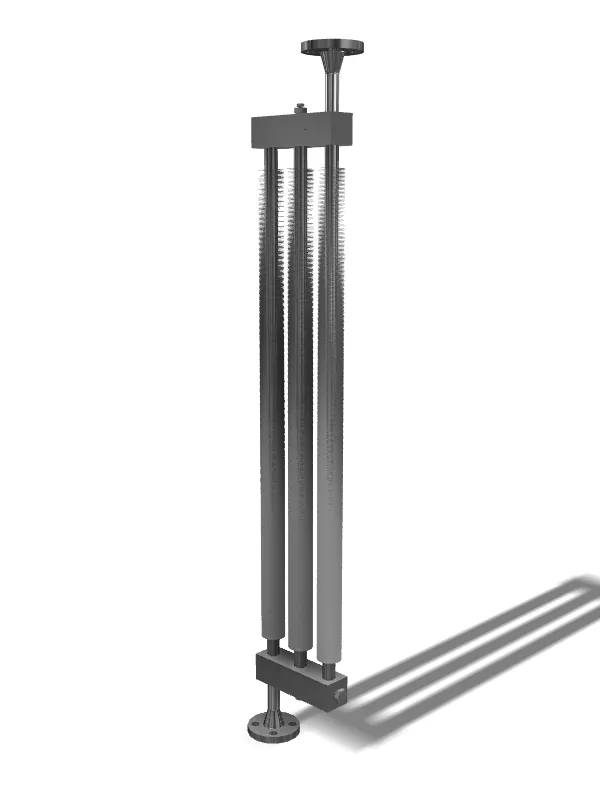

Natural air draft coolers
In the API world often the ‘natural air draft coolers’ are plainly referred to as ‘air coolers’. Operating autonomously natural air draft coolers are the most preferable and economic solution for the cooling of shaft seals. Our product categories in the air fin cooler range is versatile as well as efficient. It comprises standard commercial air coolers as well as customized/engineered air coolers. Many years of experience in manufacturing radiators and closed circuit coolers made us to a specialist for your needs.
Features:
Cooling ranges up to 2350 Watt.
Maximum working pressure 100 barg @ -20/200°C.
Available at request:
ATEX certification
Advantages
Low head designs for maximum seal liquid circulation.
Full contact laser welded fins enhance the heat transfer for optimal cooler efficiency.
The 316Ti full contact laser welded fins suit offshore applications without compromise.
For best cooler efficiency Flopac designs use cooler tubes in series, rather than parallel.
Flopac cooler designs eliminate laminar flow patterns that are fatal to cooler efficiency.
API 682 – Air Draft Coolers
CNA-100
seal cooling by natural air convection
Capacities up to 750 Watt, 104 barg @ 200oC, ATEX certified
API 682 – Air Draft Coolers
CNA -150
seal cooling by natural air convection
Capacities up to 1500 Watt, 104 barg @ 200oC, ATEX certified
API 682 – Air Draft Coolers
CNA-200
seal cooling by natural air convection
Capacities up to 2000 Watt, 104 barg @ 200oC, ATEX certified
API 682 – Air Draft Coolers
CNA-100
seal cooling by natural air convection
Capacities up to 750 Watt, 104 barg @ 200oC, ATEX certified
API 682 – Air Draft Coolers
CNA -150
seal cooling by natural air convection
Capacities up to 1500 Watt, 104 barg @ 200oC, ATEX certified
API 682 – Air Draft Coolers
CNA-200
seal cooling by natural air convection
Capacities up to 2000 Watt, 104 barg @ 200oC, ATEX certified
