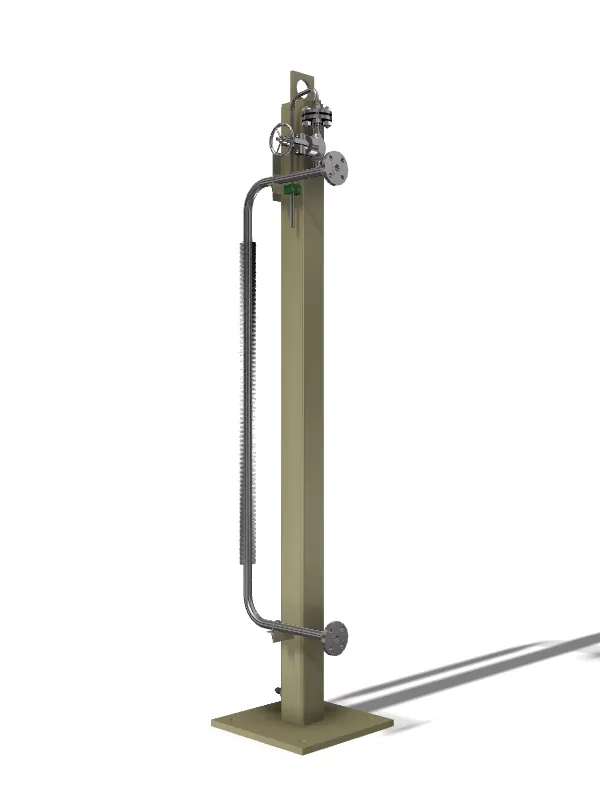

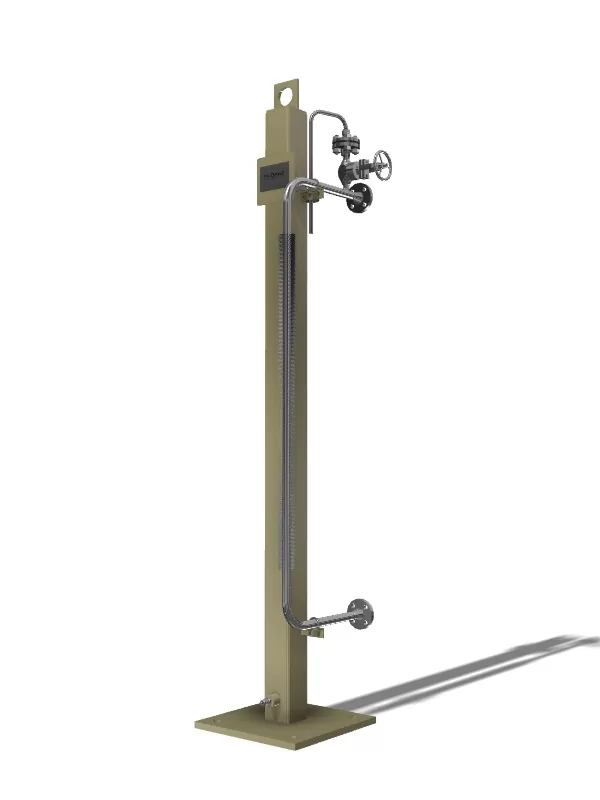

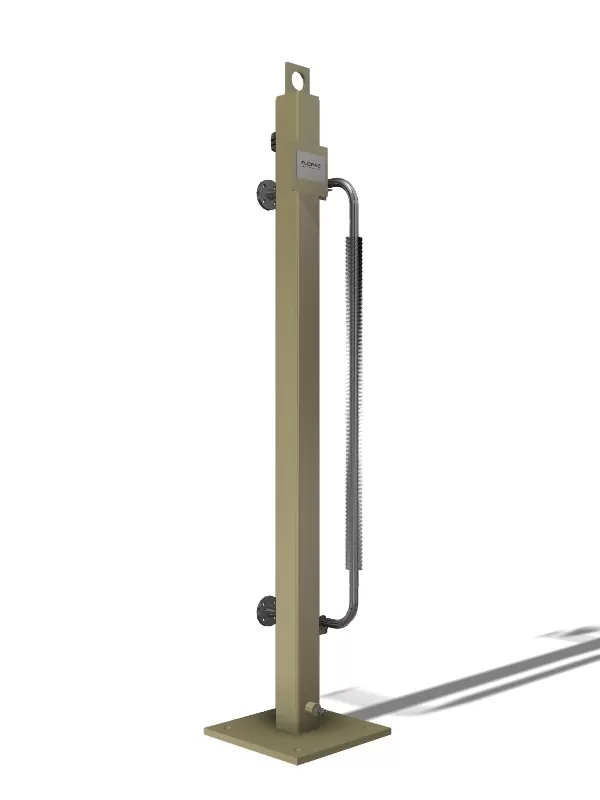

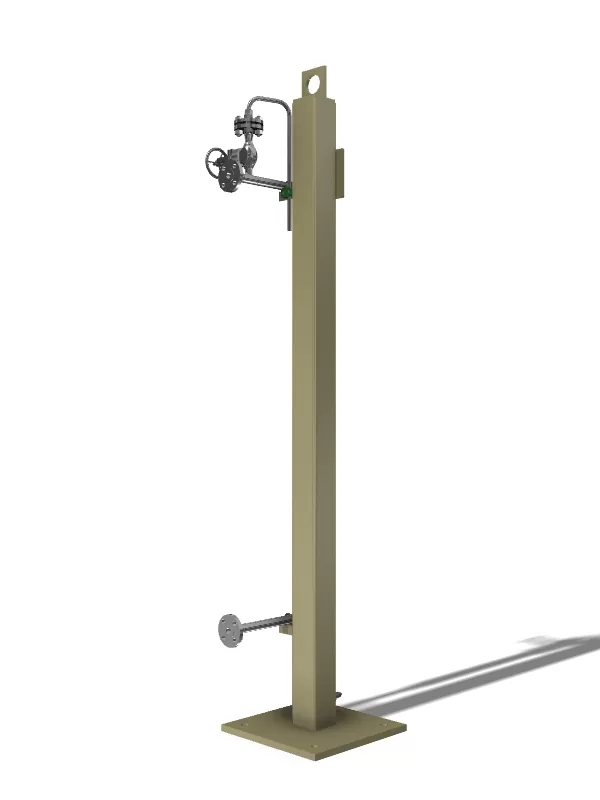

Mechanical seal system SPX-210
A complete and fully packaged Plan 21 system for arrangement 1 wet single seals (or the wet inner seal of an arrangement 2 unpressurised dual seal) in accordance with API 682 or ISO 21049 latest edition. Including support.
Standard configuration
Design ASME VIII,
Suitable for general oil/water service – Non-hazardous.
Design 40
Wetted parts AISI 316(L) / with SS 316Ti full contact laser-welded fins. SS304
To- and from seal connections ANSI 3/4″ 300# RF
Vent and drain connections ANSI 1/2″ 300# RF
Engineering units: SI units, Bar/°C.
NDE: Visual-/hydrostatic and
Surface
For heat loads up to 1.5 KW.
Available at request
Designs for higher heat loads
High temperature designs
Extended NDE packages to include inspections such as X-ray, LPE
SPX-210 Configuration
Main components
One heat exchanger
As appropriate, refer to the section coolers.
Appendages
Vent- and drain valves as appropriate; API 602 forged gate type.
One temperature gauge
Make Badotherm, skin type TG18 -/-20/+120°C, dial 100mm, made from SS316/SS304. Other makes/types and ranges on request.
Options
Additional pressure-, temperature- or flow instruments to enhance monitoring facilities.
The addition of a temperature gauge, make Badotherm, skin type TG18 -/-20/+120°C, dial 100mm, made from SS316/SS304. Other makes/types and ranges on request.
