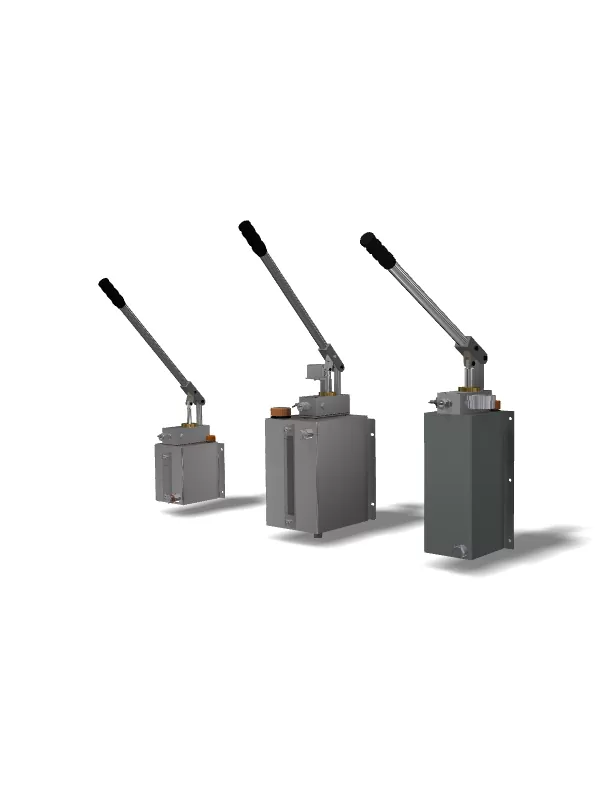

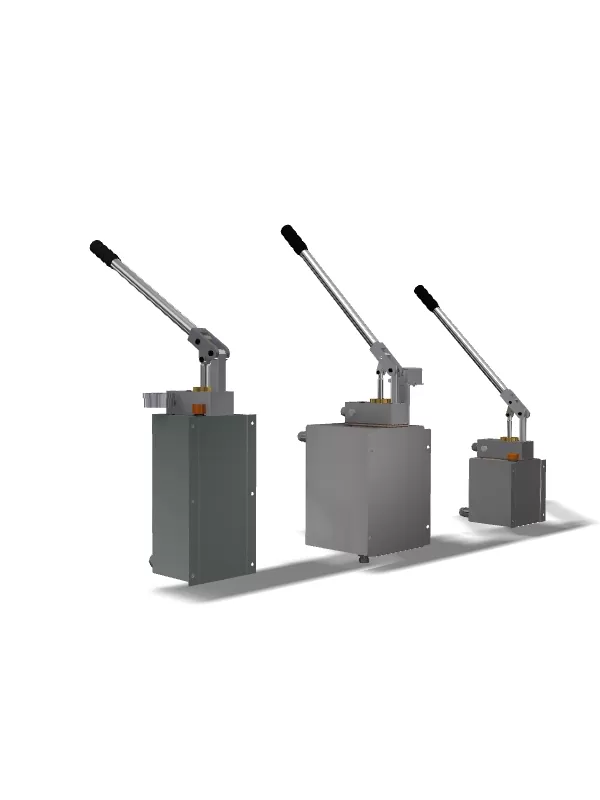

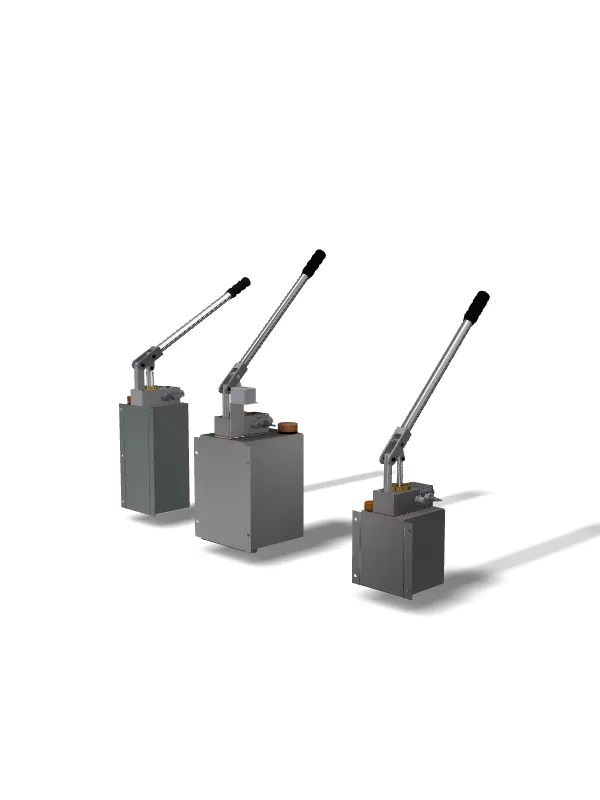

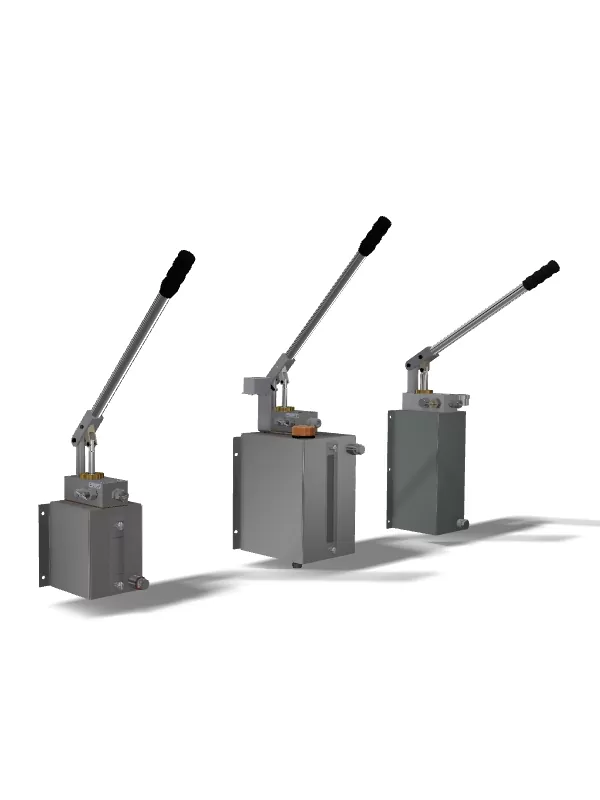

HMF 2.5 / 5 /10 Ltr.

Stand-alone make-up/topping units for refilling operations with (non-) pressurised seal flushing systems. These units are best suited for integration within a seal flushing system. Retrofitting options available as well.



Standard configuration

A high quality stainless steel Micropac® robust and compact hand pump with:



  • A high stroke capacity – up to 75cc p/str) to minimize refill time
  • Hard chrome plated stainless steel piston rod for durable operation
  • A stainless steel liquid reservoir of 2.5, 5 or 10 Ltr. (5 is recommended)
  • Any pressure capability up to 200 bar (std.= 40 bar)
  • Complete with overload protection valve
  • Complete with a 9/16” UNF* high-pressure charging connection

 (*) Alternative connections available on request. When ordered together with a Flopac® seal support system, Flopac will arrange for the proper connections and integration within the system.

HMS / Ordering code

HMS  –  V /2  –  MC – P
(HMS is code for the basic equipment)

Material configuration options:

9

V = seal liquid reservoir volume in L.:

10 20 50(*1) (V is standard followed by /2)

9

MC = Material Configuration

W Anodised alloy for mineral oils and water
SW Stainless steel / bronze for mineral oils,
water and most other liquids

9

P = maximum charge pressure in barg(*2):

16, 25, 40, 60, 100, 160, 200

(*): select a pressure range that is ≥20% above the desired charging pressure. For example: you need to charge to 28 barg which defines a requirement of plus 20%, is 33.6 barg, Select 40.

For example

The ordering code HMF-5-SW-40 specifies a HMF make-up/refill unit, that is provided with a 5 L. reservoir and is constructed of mainly stainless steel 316 materials. The nominal pressure capacity is 40 barg, best selected for a maximum operational pressure of 32 barg.

Options

9

Unit can be automated using an air driven pump for ease of operation

9

Unit can be provided with a pressure release valve

9

Instead of one refill unit per each seal flushing system one could consider a mobile unit to serve multiple systems. Please refer to our range of HMS refill units

9

Soft parts in EPDM or Viton available on request

9

Level gauge i.s.o. dipstick

9

Other charging connections (f.i. 1/4” or 1/2” BSP/NPT, flanges etc.) available on request

9

ATEX certification if and as needed

Please contact Flopac for a more detailed advise on all topics related to Flopac® make-up, refill & topping-up units. We will gladly assist.
